LR BM-8300 High-Output Brine Production System

Produce up to 8,300 litres of finished salt brine in approximately 40 minutes

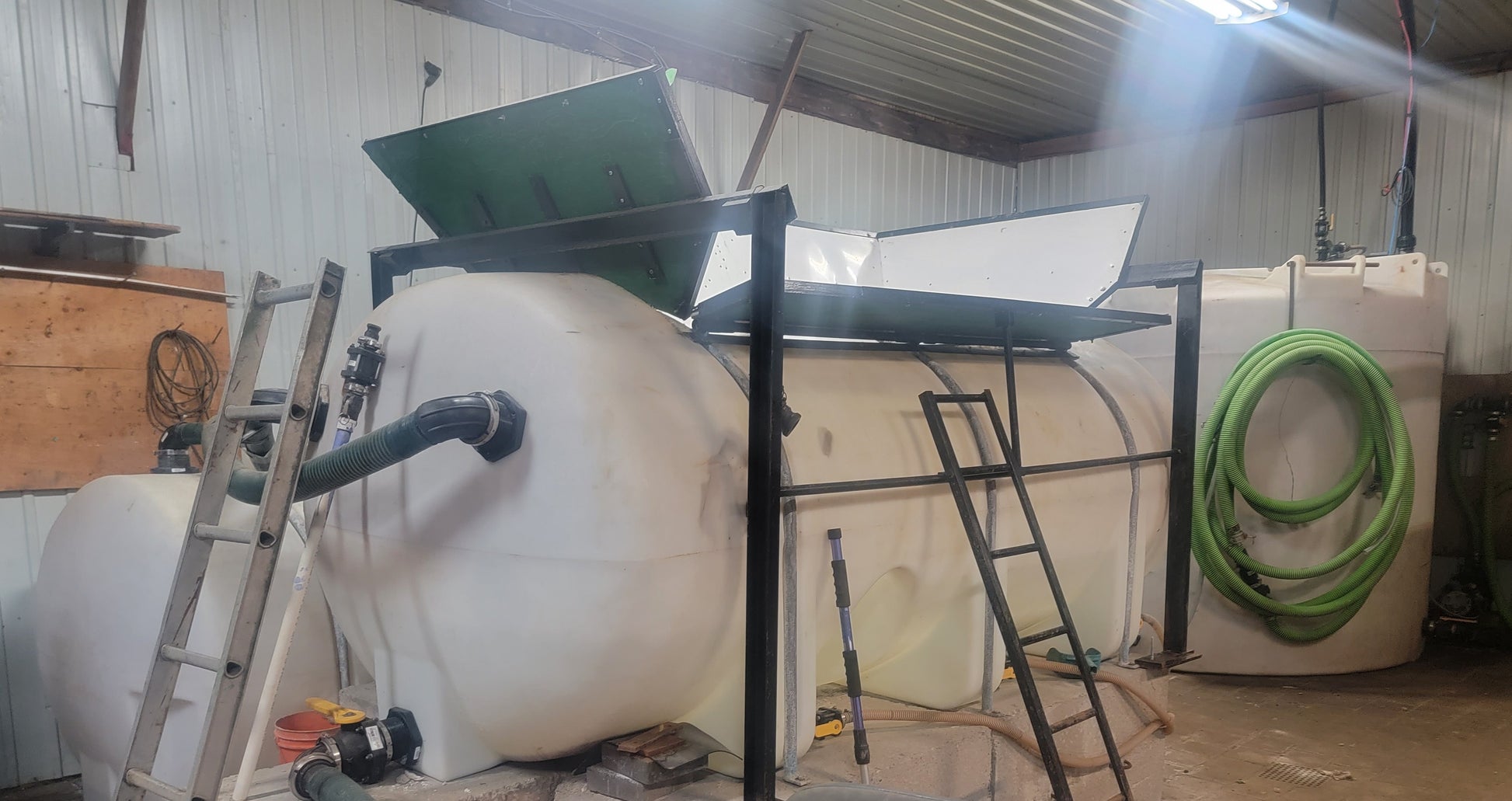

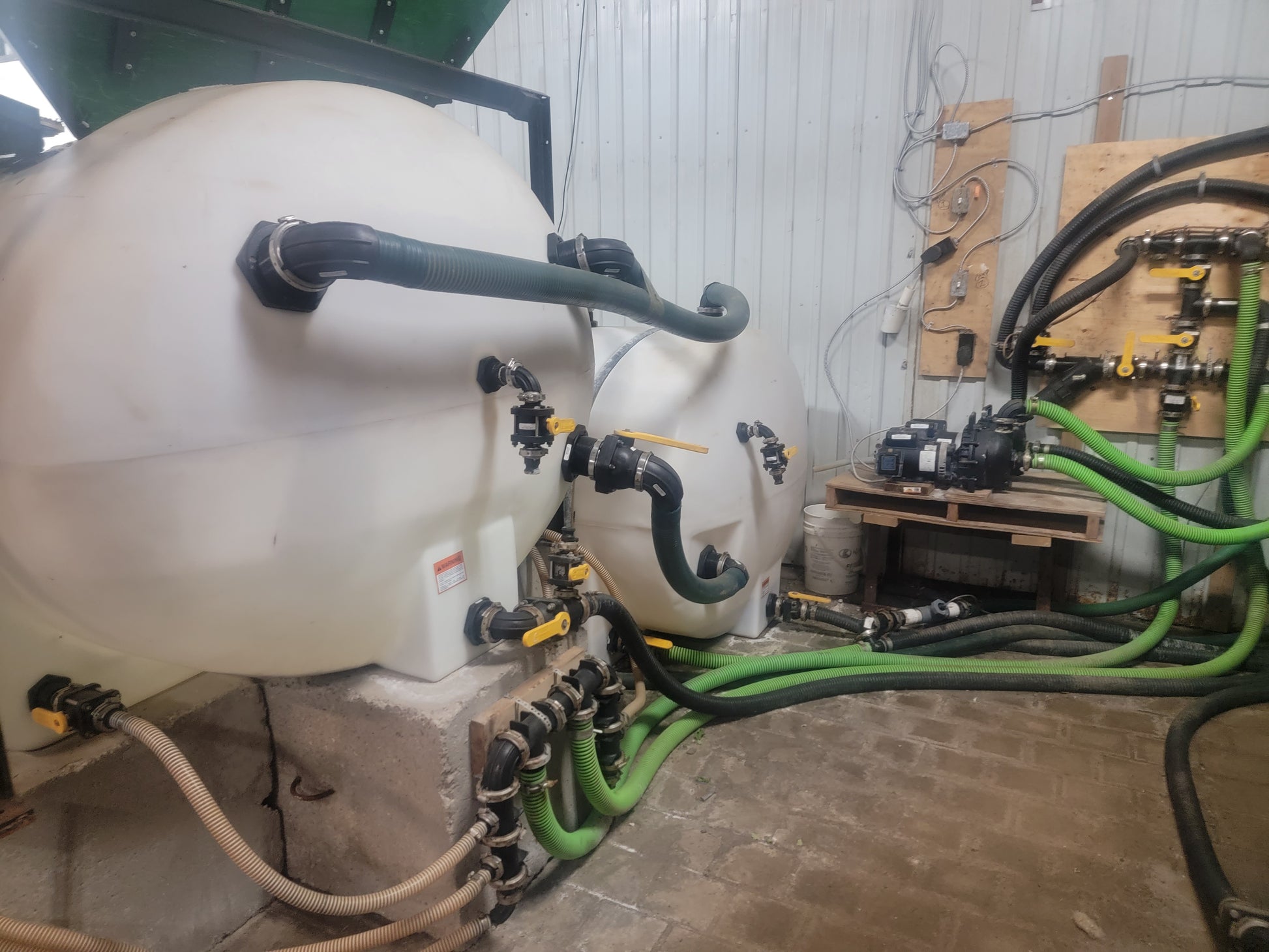

The LR BM-8300 is a commercial, made-to-order brine production system designed for snow and ice contractors that need reliable in-house liquid production. The tandem-tank layout supports continuous mixing and transfer, while the dual-pump manifold provides the flow and control needed for efficient batch production.

The system can process either rock salt or salt fines and can be loaded using a skid steer or loader.

Standard system includes

• Approximately 4,920 L upper mixing tank

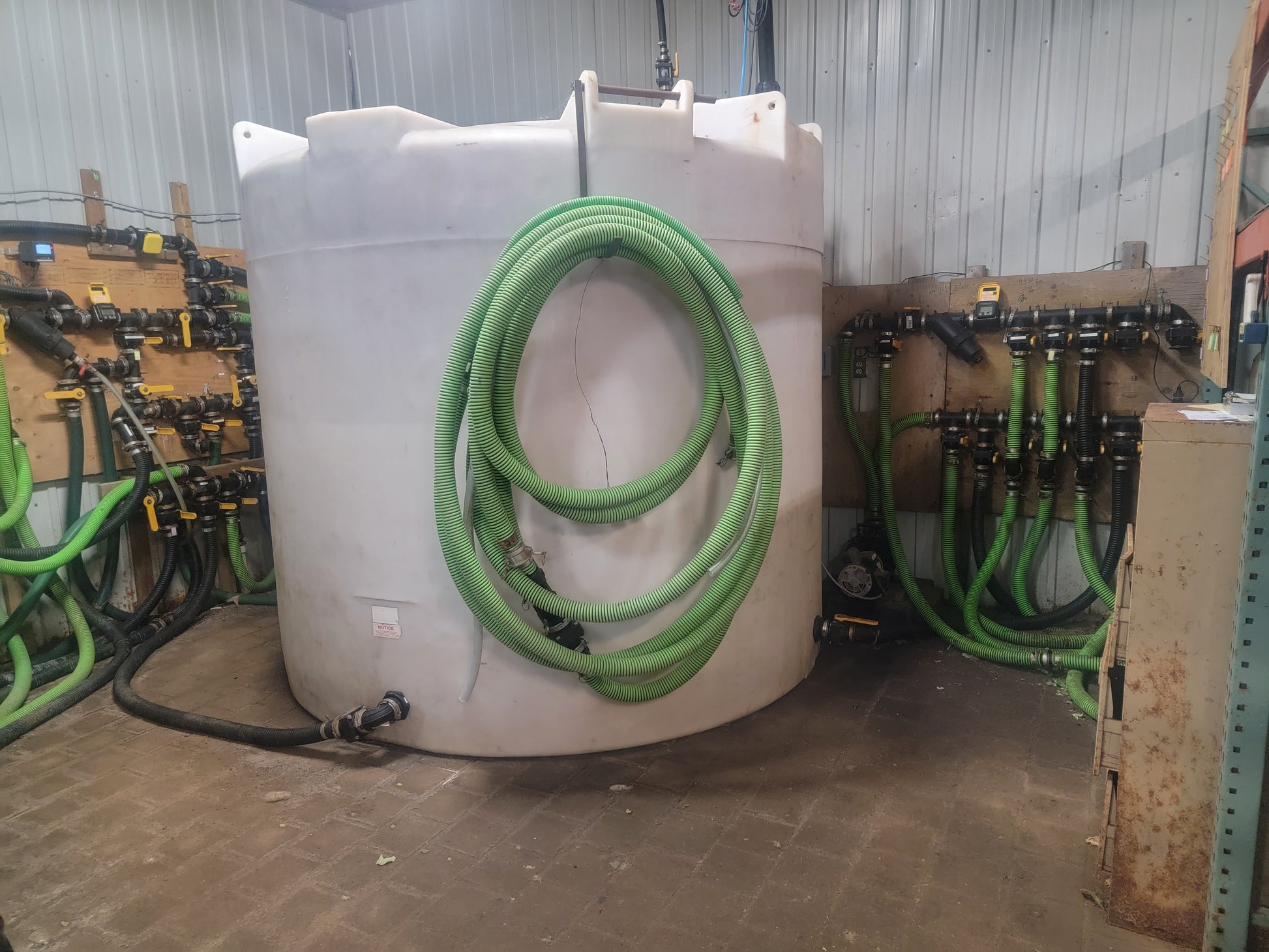

• Approximately 6,060 L lower processing tank
• Two 5 HP electric pumps
• 208/230 V single-phase electrical configuration

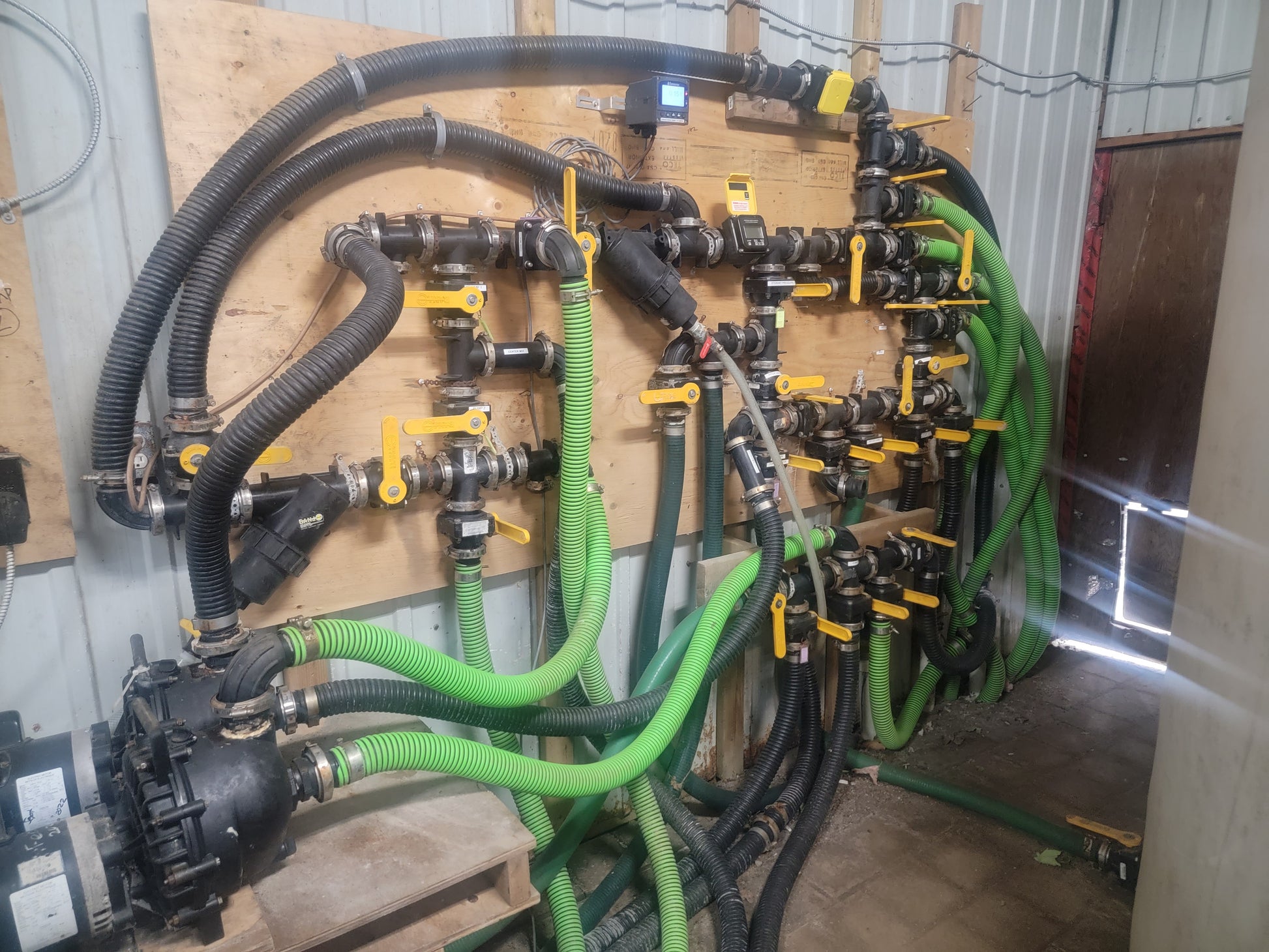

• Banjo ring-and-seal manifold and valving
• Integrated manifold filtration
• Flow meter
• Salt brine hydrometer
• Required professional delivery, installation and commissioning
• On-site operator training
• One-year limited warranty

Performance

• Production capacity: up to 8,300 L end-to-end in approximately 40 minutes
• Salt compatibility: rock salt or salt fines
• Loading method: loader or skid steer

Site requirements

• Unit footprint: approximately 12 ft × 14 ft
• Wall space for manifold and controls: approximately 8 ft × 10 ft
• Electrical service: 208/230 V single-phase
• Recommended fresh-water storage: approximately 11,350 L
• Fresh-water storage tank is not included
• Suitable floor, drainage, service access and loading access are required

Available options

• Electronic salinity monitor — $6,830.86
• Two structural tank skids — one skid for each tank so both tanks can be moved — $24,822.40 total
• Loading funnel — $3,767.98
• Liquids program audit — $5,981.48
• Additional tanks, plumbing and site-specific infrastructure quoted separately

Starting price: $59,983.60 CAD.

Every BM-8300 is built to order. Delivery, installation, commissioning and operator training are required so the system is assembled correctly, tested under operating conditions and handed over with a complete understanding of its operation. Final scope, site preparation, travel and delivery details are confirmed in the project estimate.

Specifications and production times are based on the configured system and normal operating conditions. Site conditions, salt quality, water supply and operator procedures can affect performance.
