Filling Station Tank Array — Turnkey Bulk Brine Infrastructure

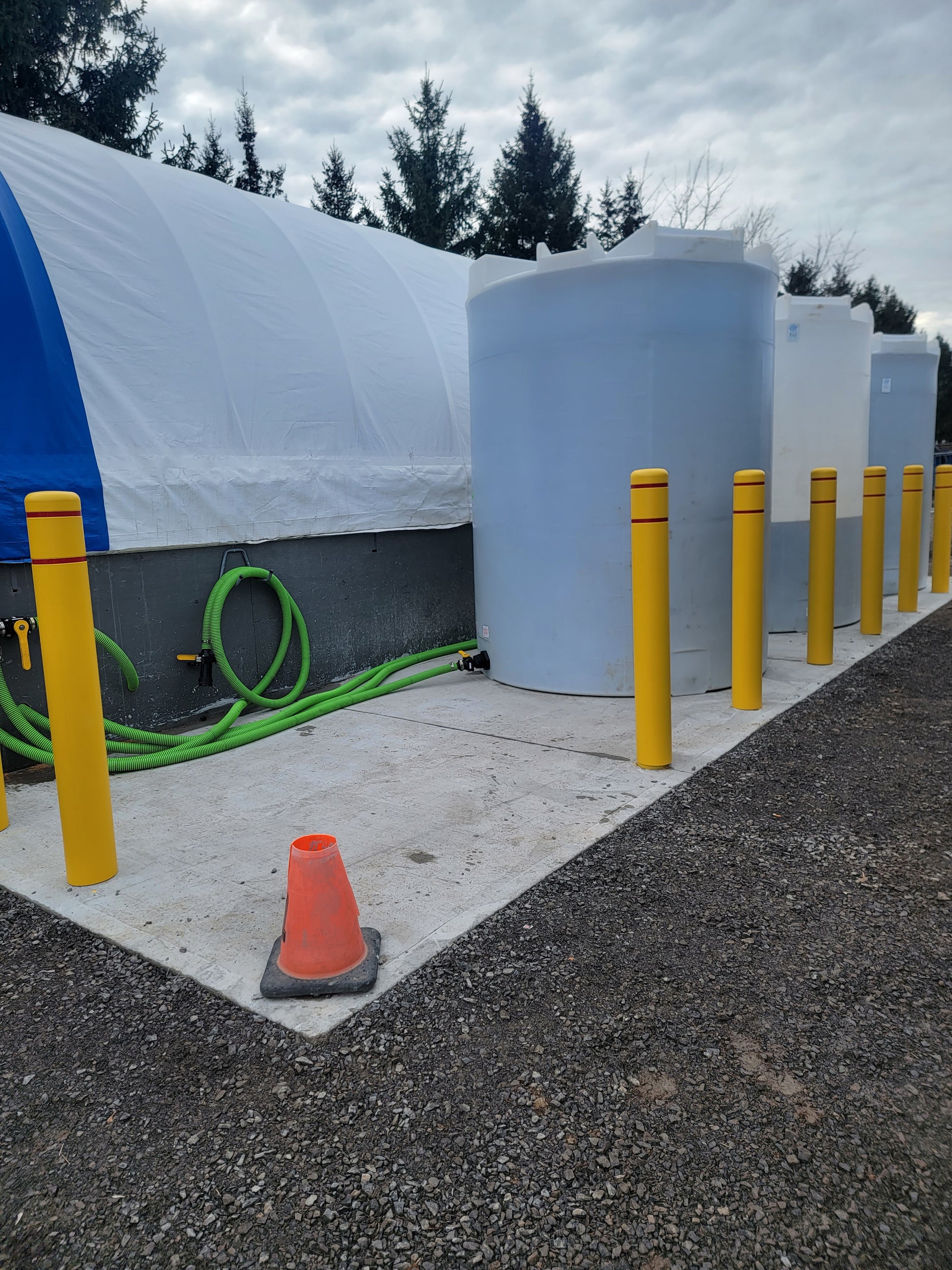

Purpose-built, sealed transfer system designed for safe on-site storage and accurate dispensing of winter liquids. This array includes three 3,000-gallon, 1.5 SG vertical tanks on a reinforced pad, integrated safety features, and an inside-mounted manifold for clean, controlled liquid movement.
Why This Setup
- High-capacity storage: 3 × 3,000 gal tanks (1.5 SG) for bulk brine and blends.
- Sealed handling: Dedicated manifold keeps hoses connected—reduces contamination and spills.
- Built-in safety: Crash protection, catch basin for runoff/leak control, individual tank shut-offs.
- Accurate dispensing: Inline filter + flow meter for clean, measured transfers.
- Operational efficiency: One valved camlock connection for deliveries and dispensing.
What’s Included
- (3) 3,000 gal vertical tanks (1.5 SG rating)
- Individual tank shut-off valves
- Loading hose valve to minimize spills

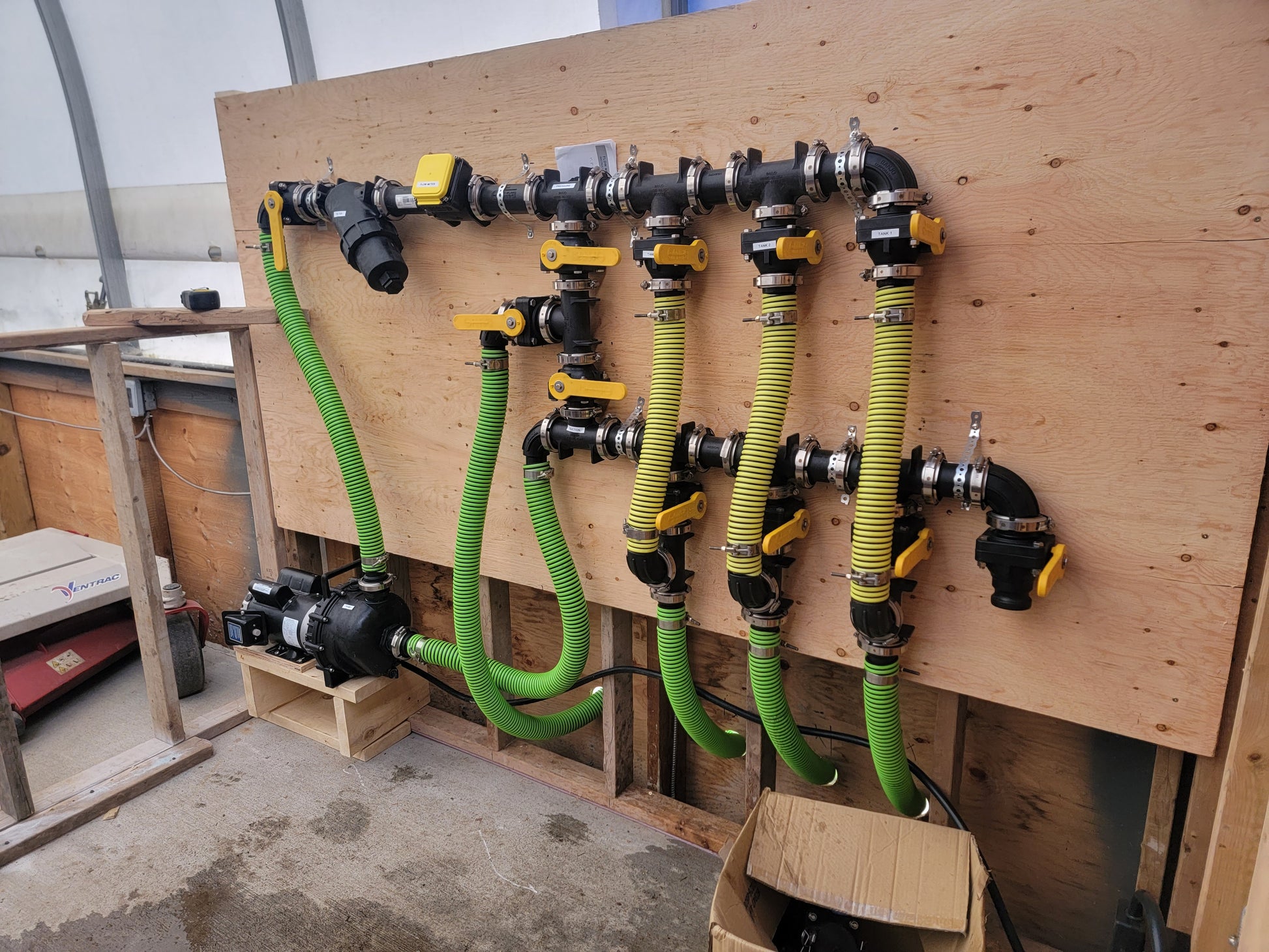

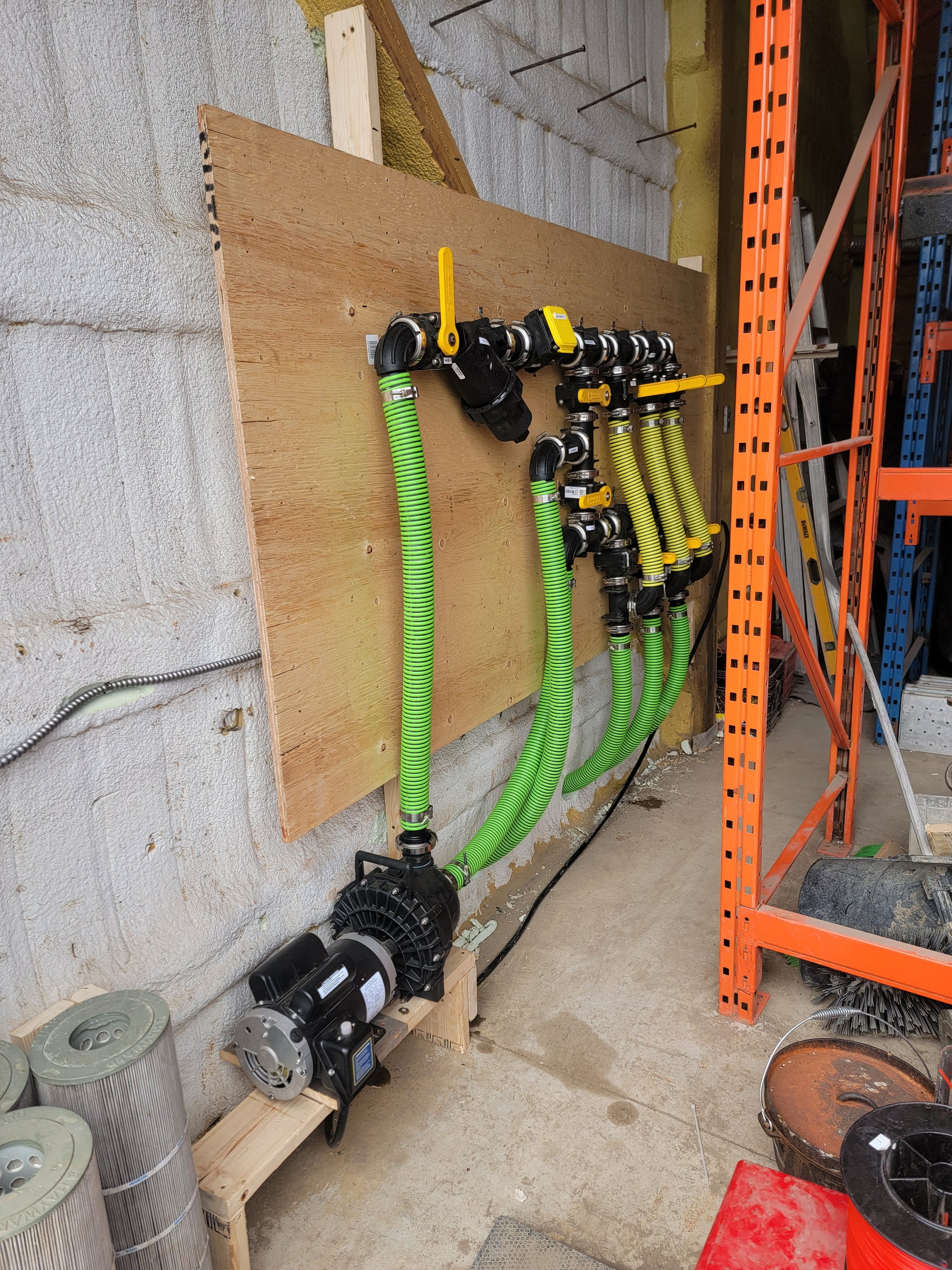

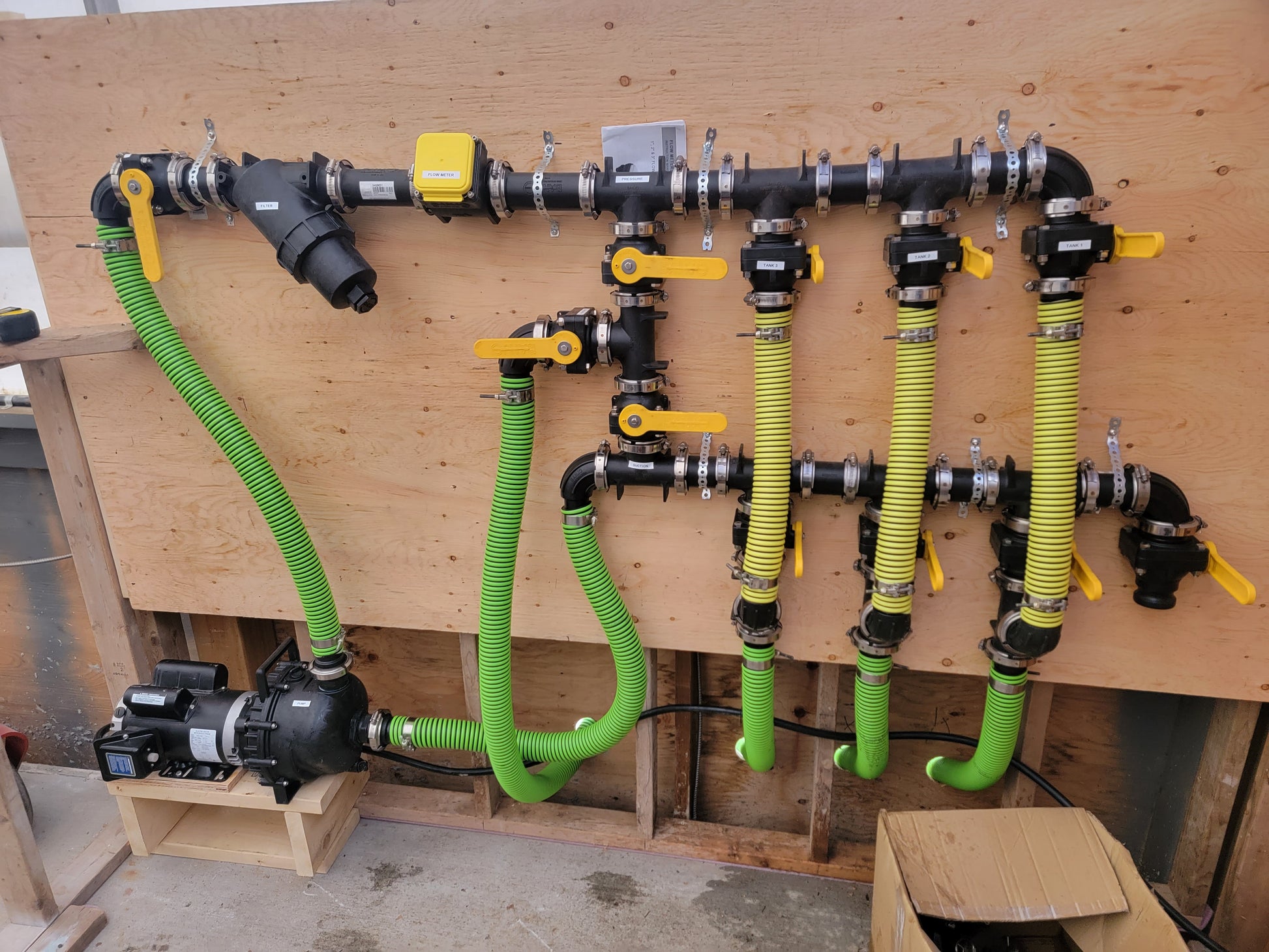

- Inside-mounted Filling Station Manifold:
- Shut-off valves for each tank
- Plumbing for liquid movement between tanks
- Inline filtration
- Flow meter for precise measurement
- Dedicated pump for the array
How It Works
All liquid movement occurs within a closed manifold—no hose removal required. Redundant section valves help prevent unintended transfers. Deliveries and outbound dispensing are handled through a single, valved camlock hose connection to keep the site tidy and safe.
Ideal For
- Municipal yards and commercial depots
- Bulk salt brine and performance blends
- Operations requiring accurate metering and low-spill handling
Quick Specs
| Total Capacity | 9,000 gal (3 × 3,000 gal) |
| Tank Rating | 1.5 SG |
| Pad | Concrete with catch basin |
| Protection | Crash/impact posts |
| Controls | Individual tank shut-offs; redundant section valves |
| Filtration / Metering | Inline filter; flow meter |
| Pump | Dedicated pump for array transfers |

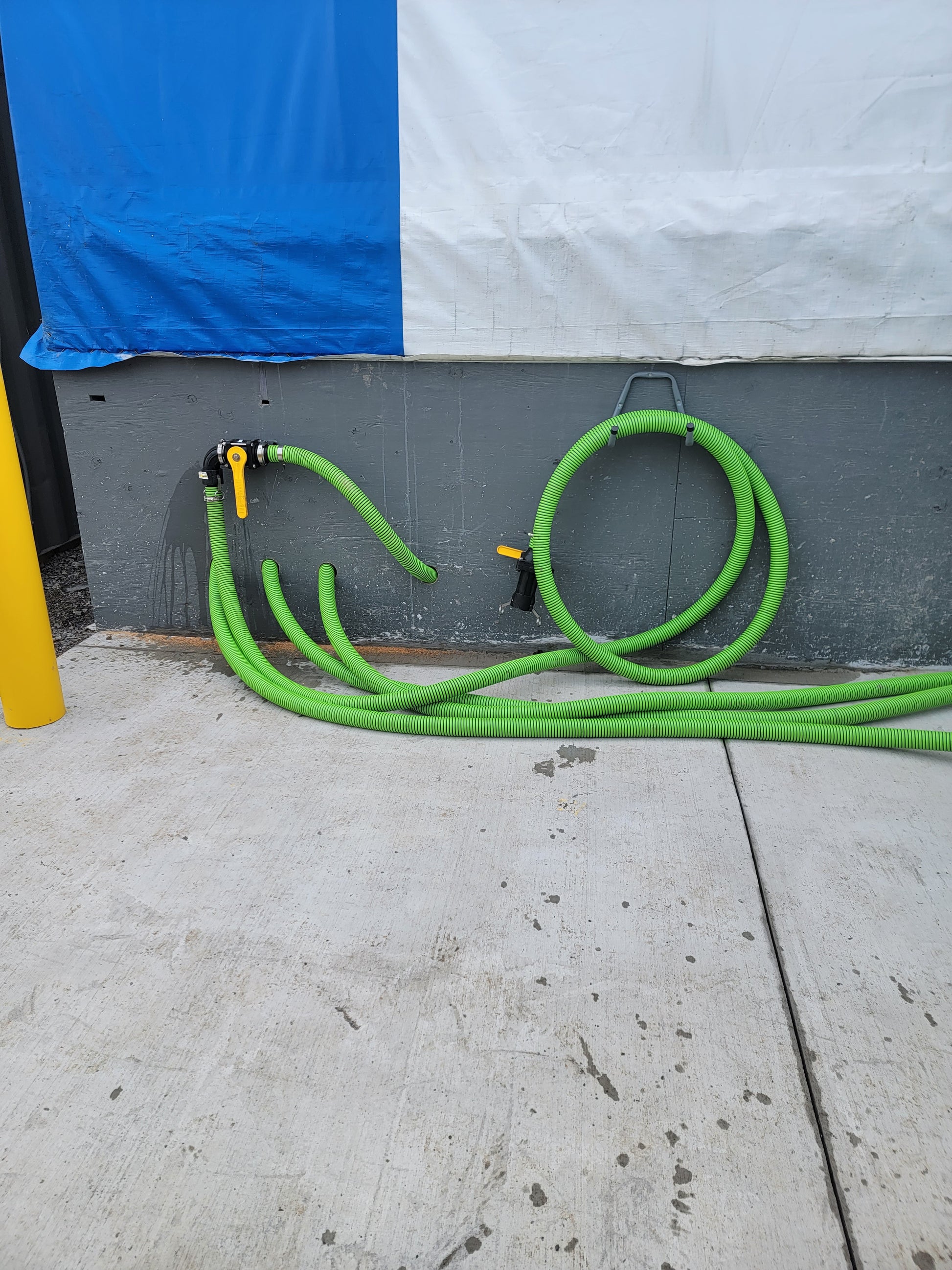

| Connections | Single valved camlock for delivery & dispensing |
Popular Add-Ons
- Secondary containment enhancements / berms
- Concrete pad placement
- Crash/impact protection posts
- Catch basin for runoff/leak protection
- Remote level sensors and telemetry
- Heated lines or enclosure options
- Additional manifolding for more tanks
Install & Support
Professional install, commissioning, and operator training available. Contact us for site review, lead time, and freight.
